Buckets
From Micro Buckets to Large Shredder
Any
Brackets
60ft³
Max Capacity
7'6"
Max Width
Feeding Time
We offer a range of buckets to cater to most needs, from Micro Root buckets to our large capacity shredder buckets.
Premium Hydraulic Drive
Flexible Release System
Our feeder and mixer buckets feature manual stone release as standard, or can be upgraded to a hydraulic action.
Edge That Lasts
Built for Ease
Our Buckets are all designed to be low maintenance, meaning less hassle for you.
Key Features
Hydraulic motor offers performance and streamlined use
Quick release with between 6 and 14 stainless steel blades
As standard
Optional extra
Adjustable Bolt-On
Hard wearing and long-lasting edge surface.
Standard Features
-
Various models and sizes (4' to 8' wide)
-
Bolt-on, width adjustable brackets enable ‘offset’
-
Inset motor for streamlined use
-
Manual stone release
-
Hardened wearing edge
-

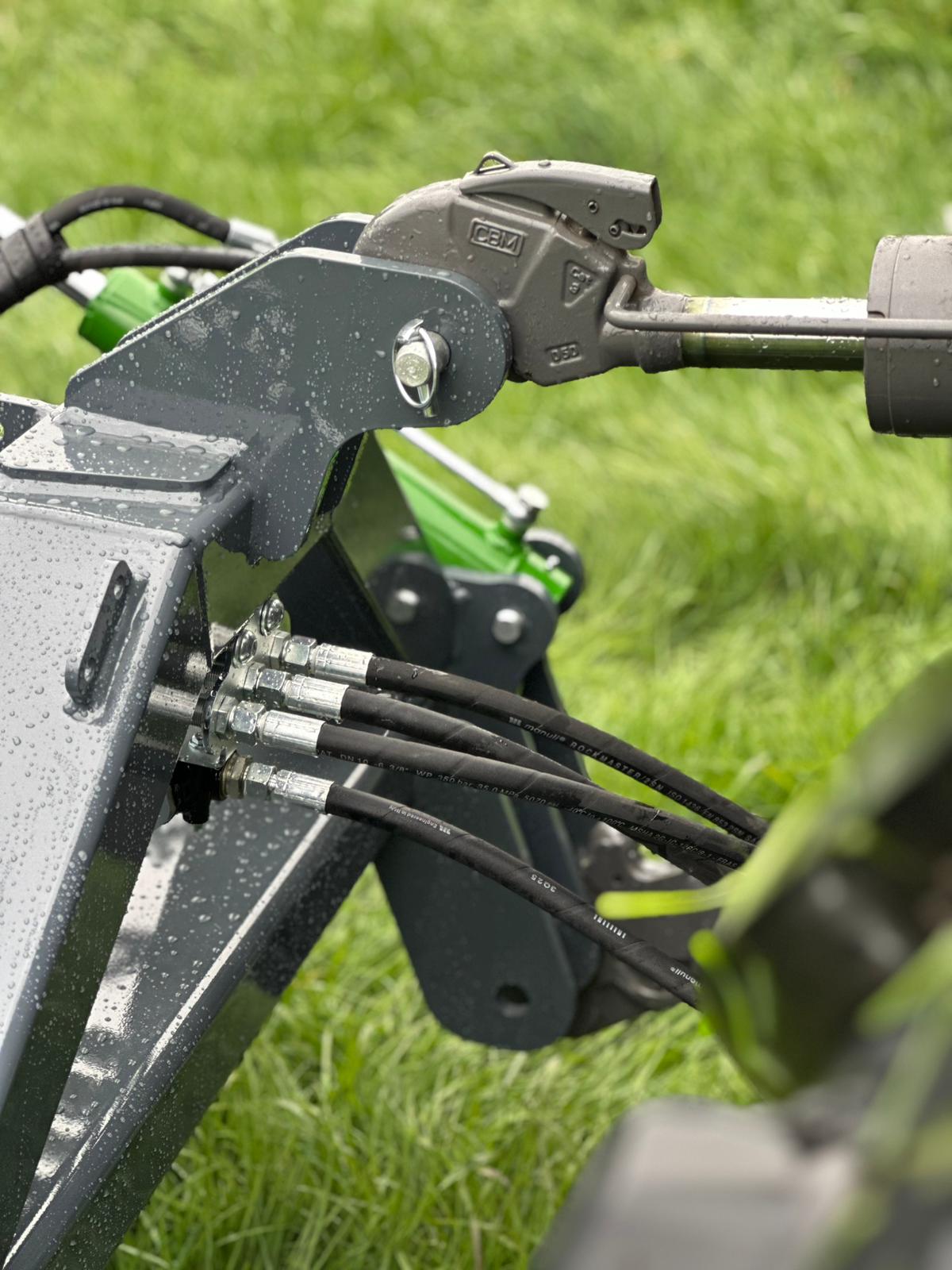

Hydraulic hose and couplings to suit
-
Cross-line relief valve (motor protection)
Roots/Cereal
Our feeder buckets can handle root crops or cereals. The adjustable rotating cutting die can be quickly and easily switched out depending on the feed type being processed. Our feeder buckets range from 4′ (Skid steer) to 7’6″ in standard sizes.

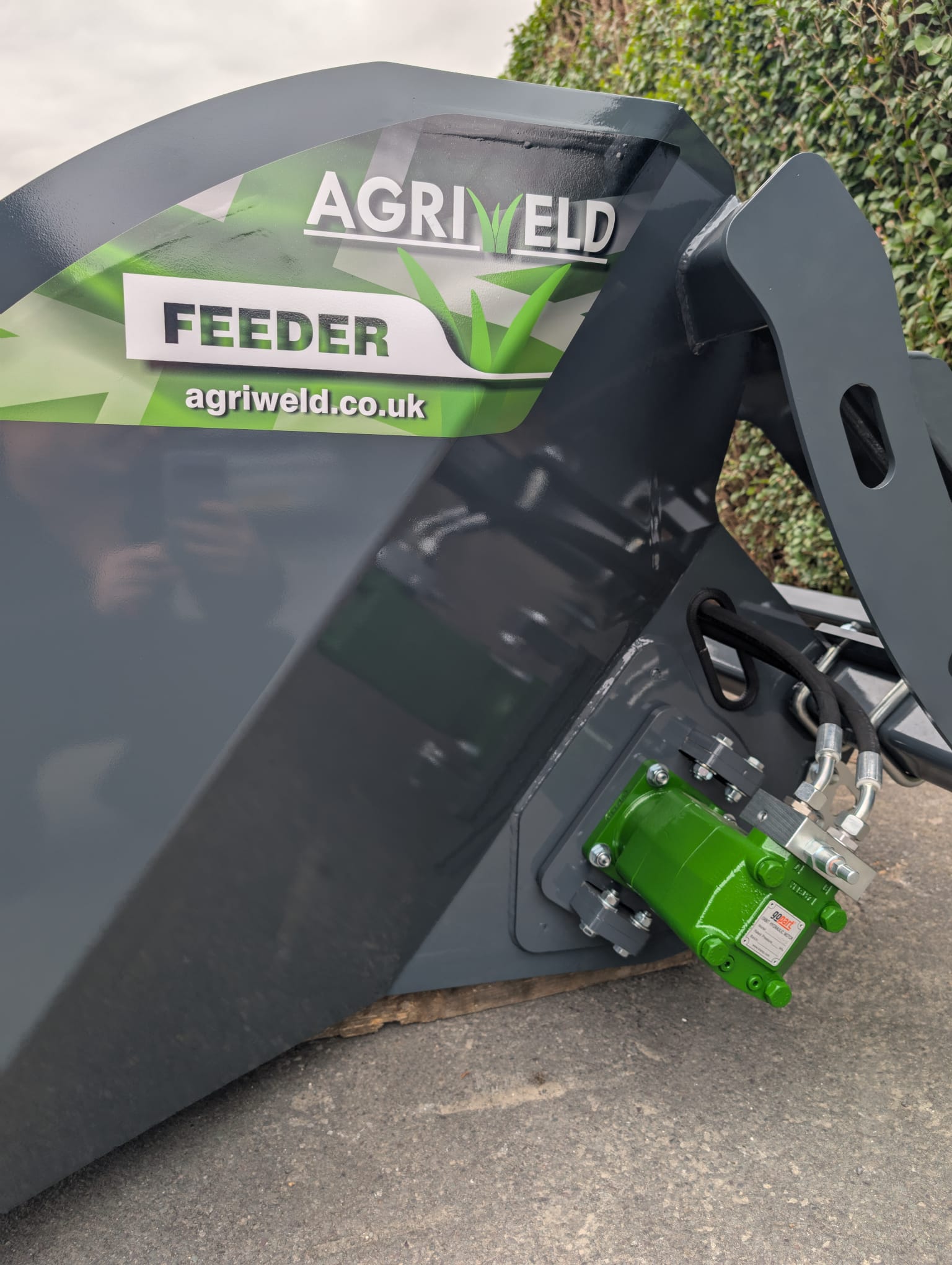

The 630cc hydraulic motors offer efficient power and features a Direct Flexi-Drive motor protection system for peace of mind.

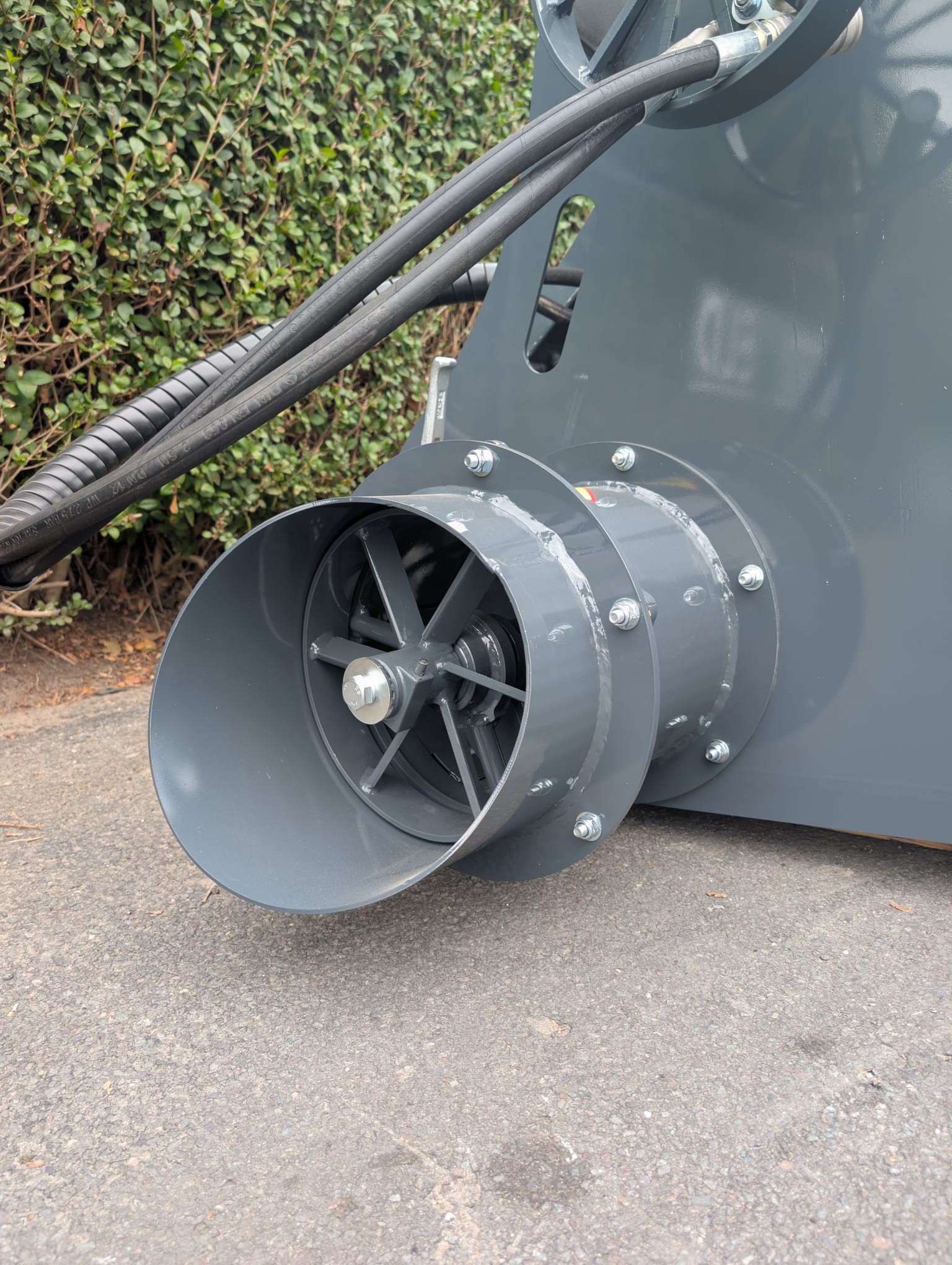

The rotating cutting die features between 6 and 14 stainless steel blades for proficient slicing with an integrated stone release that is manual as standard but can be upgraded to a hydraulic mechanism.
All our buckets feature cross-line relief valves and nylon bushings.
Width adjustable brackets enable an ‘off-set’ to allow narrower buckets to discharge feed beyond the loader wheels.
Optional Extras include
- Hydraulic stone trap
- Hydraulic shut off flap
- Bag filling chute / holder
- Speed control

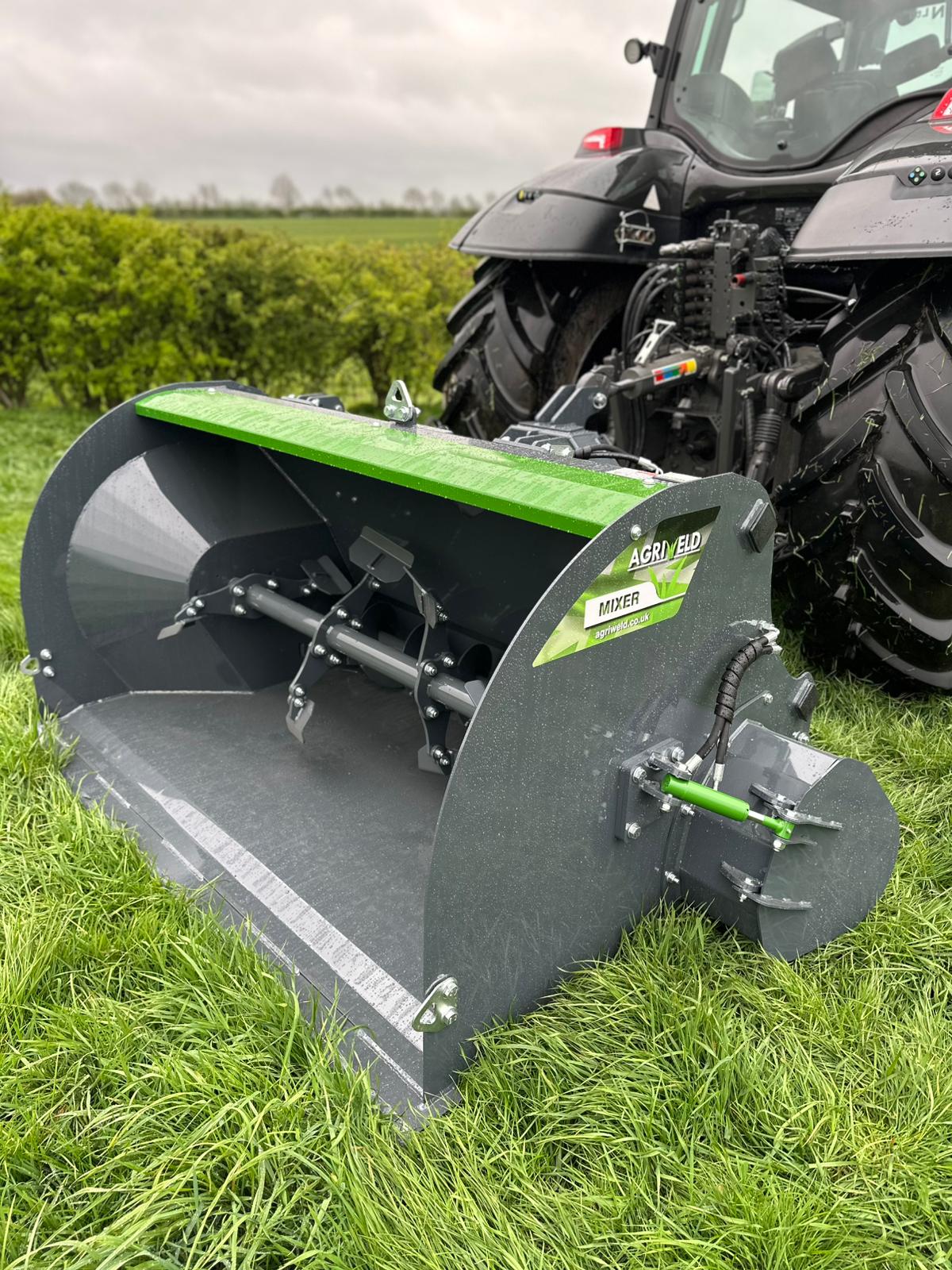

- 3-point linkage bracketing to enable tractor rear mounting

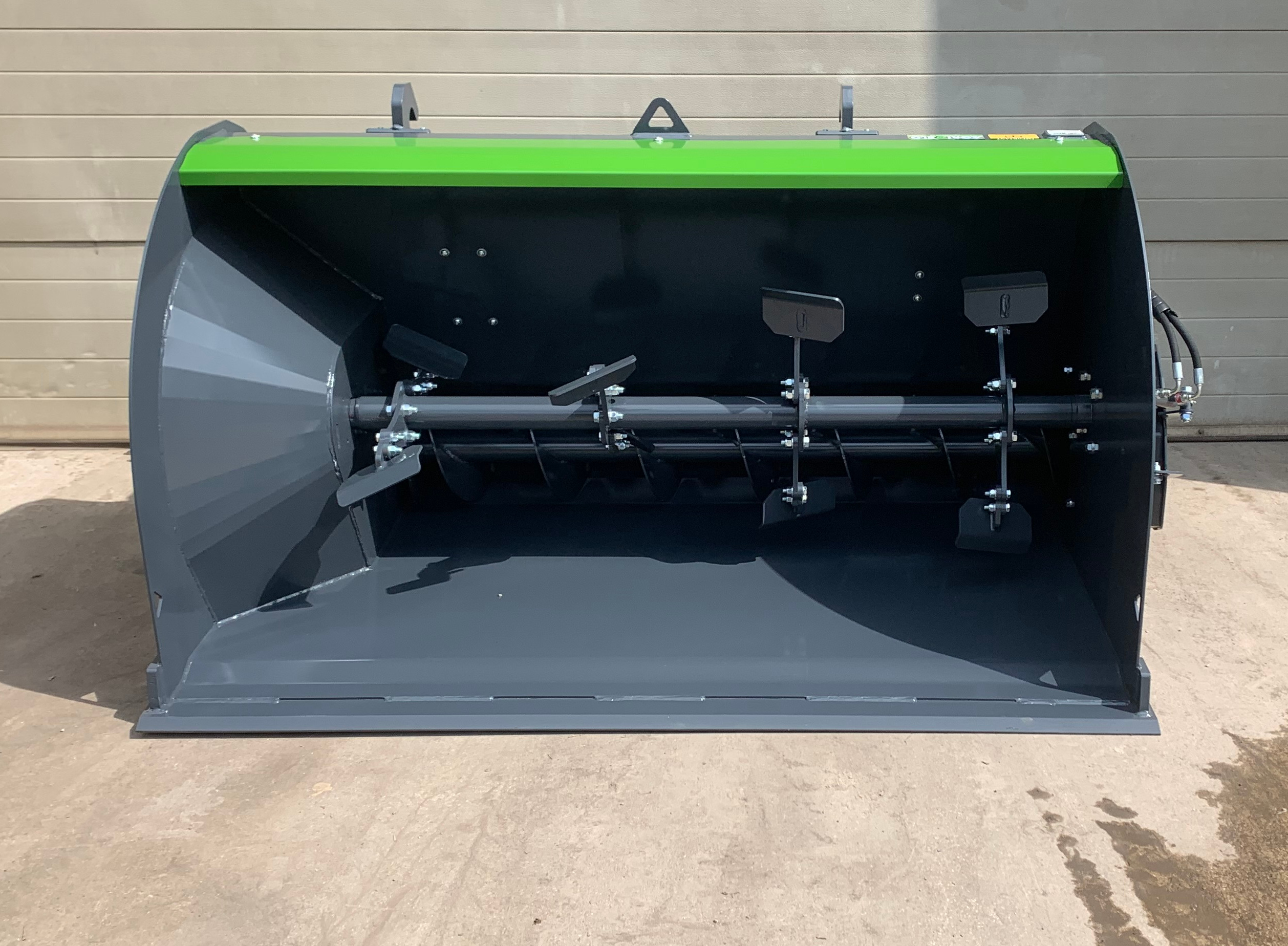

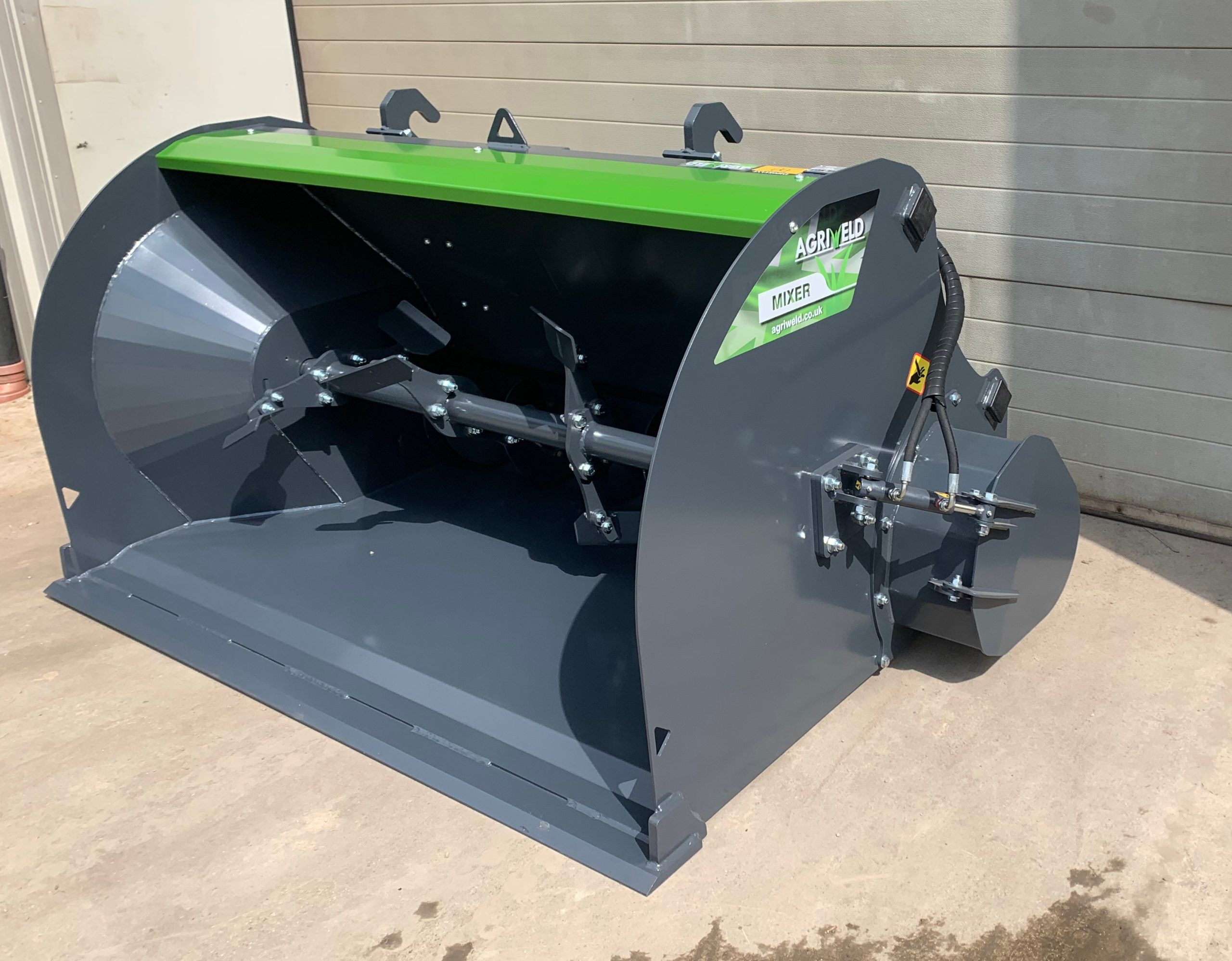

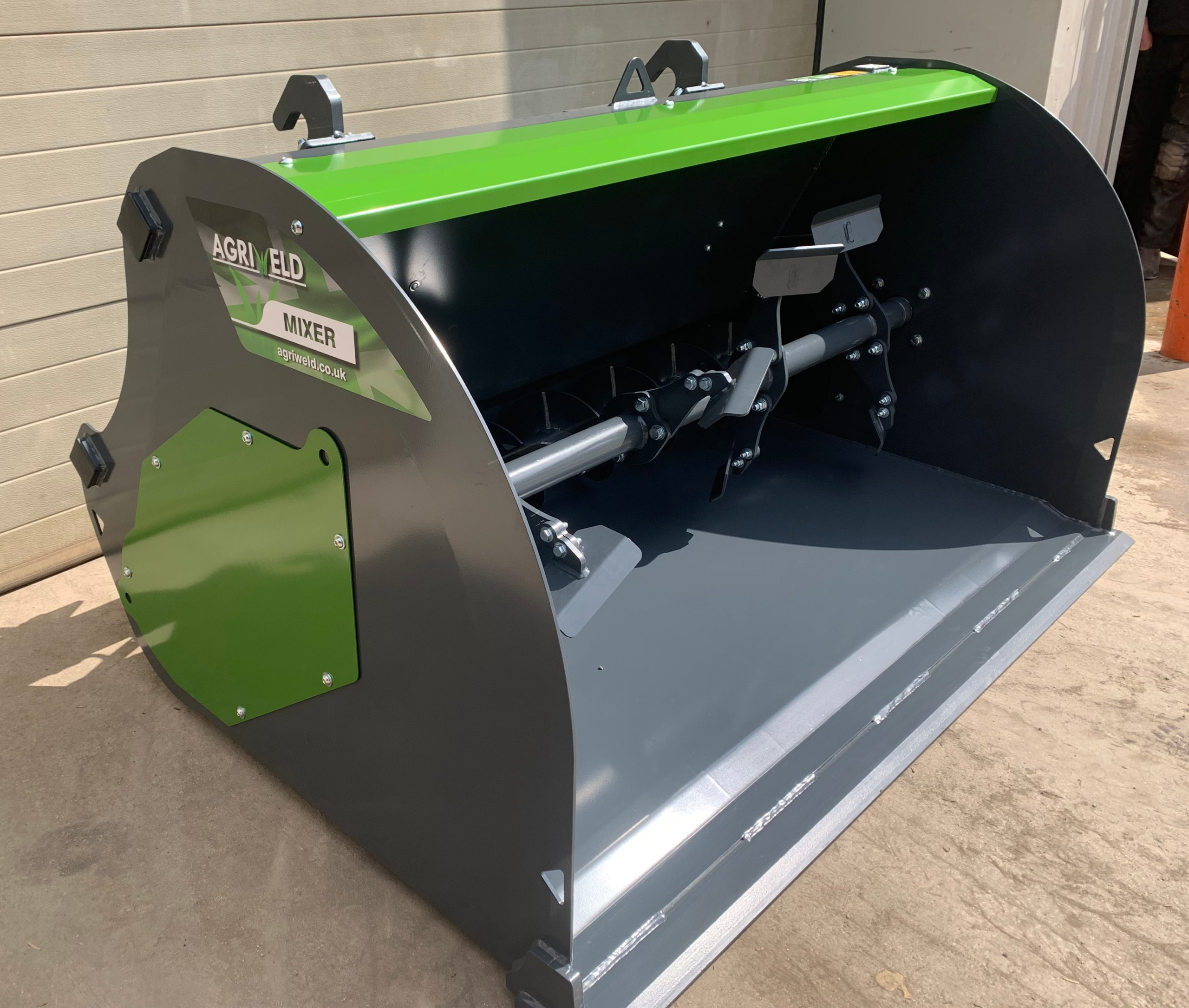

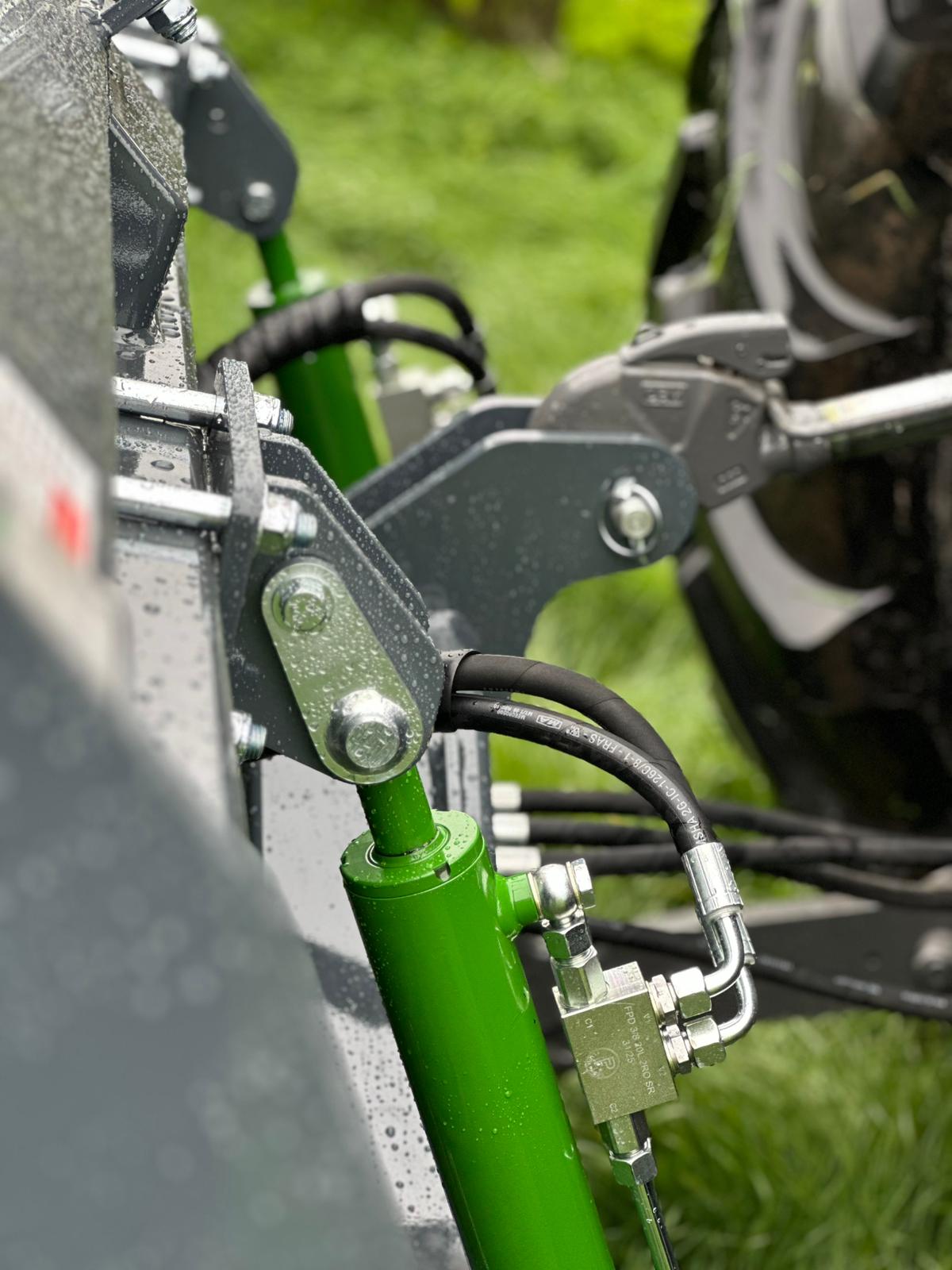

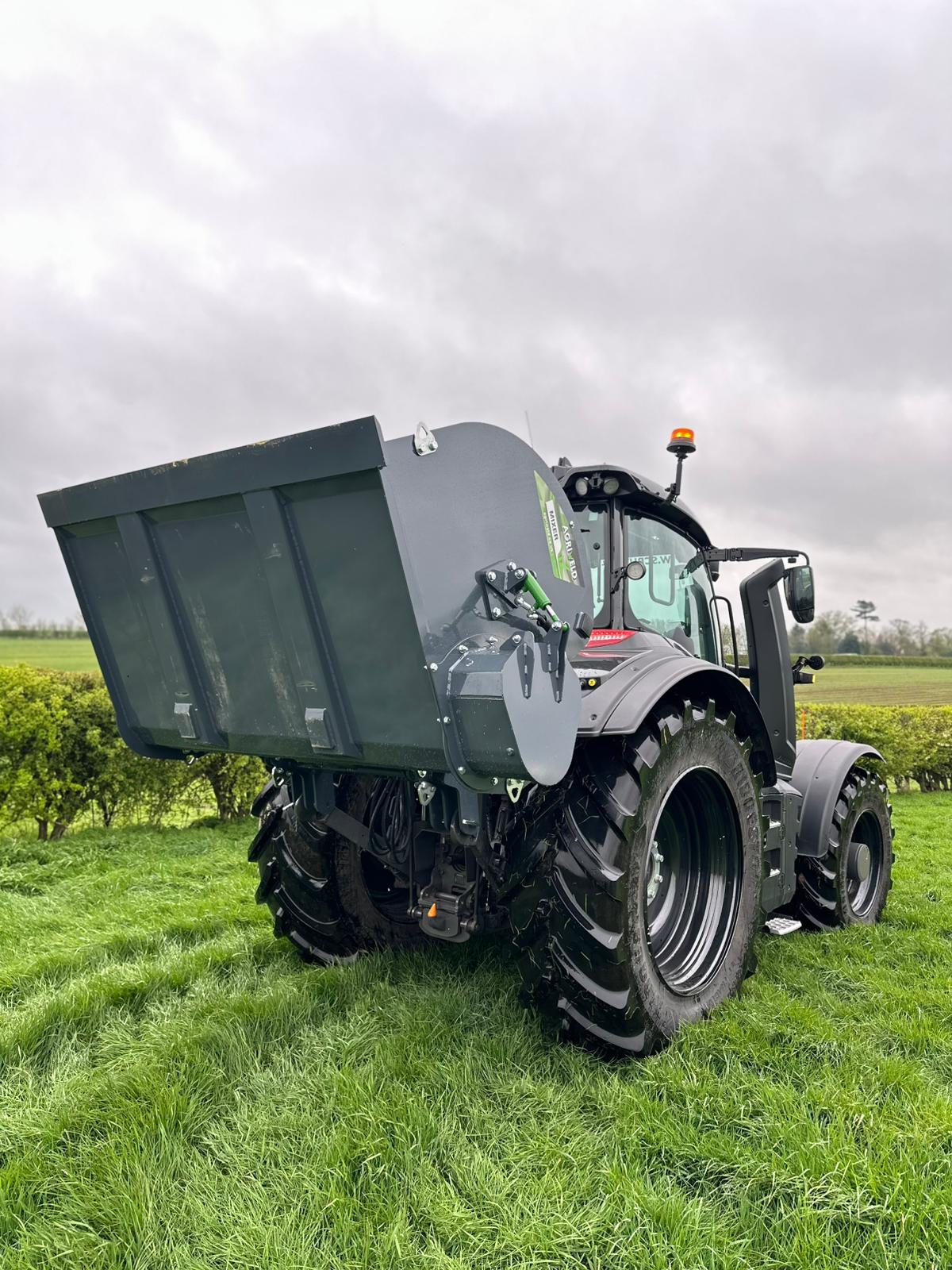

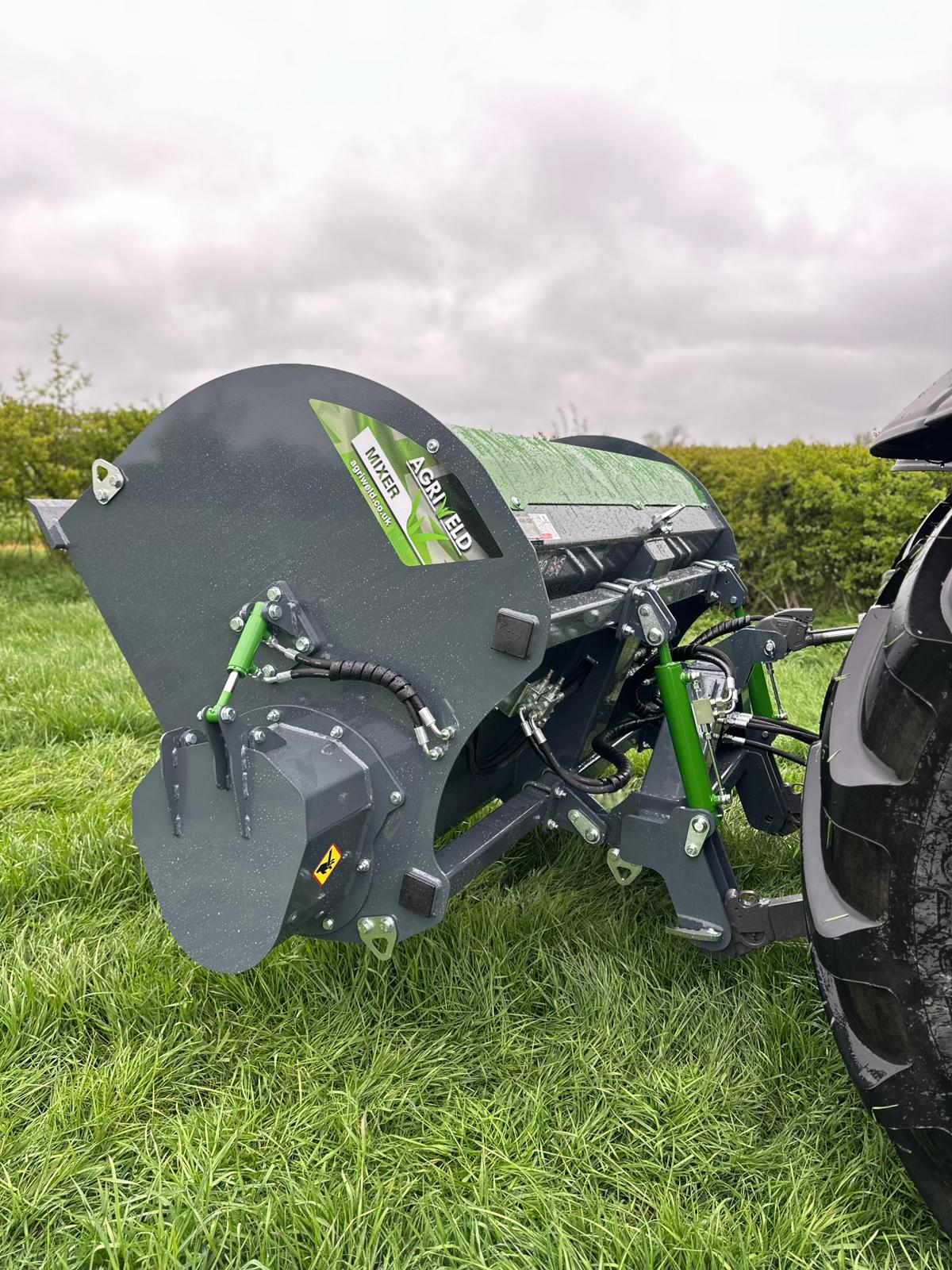

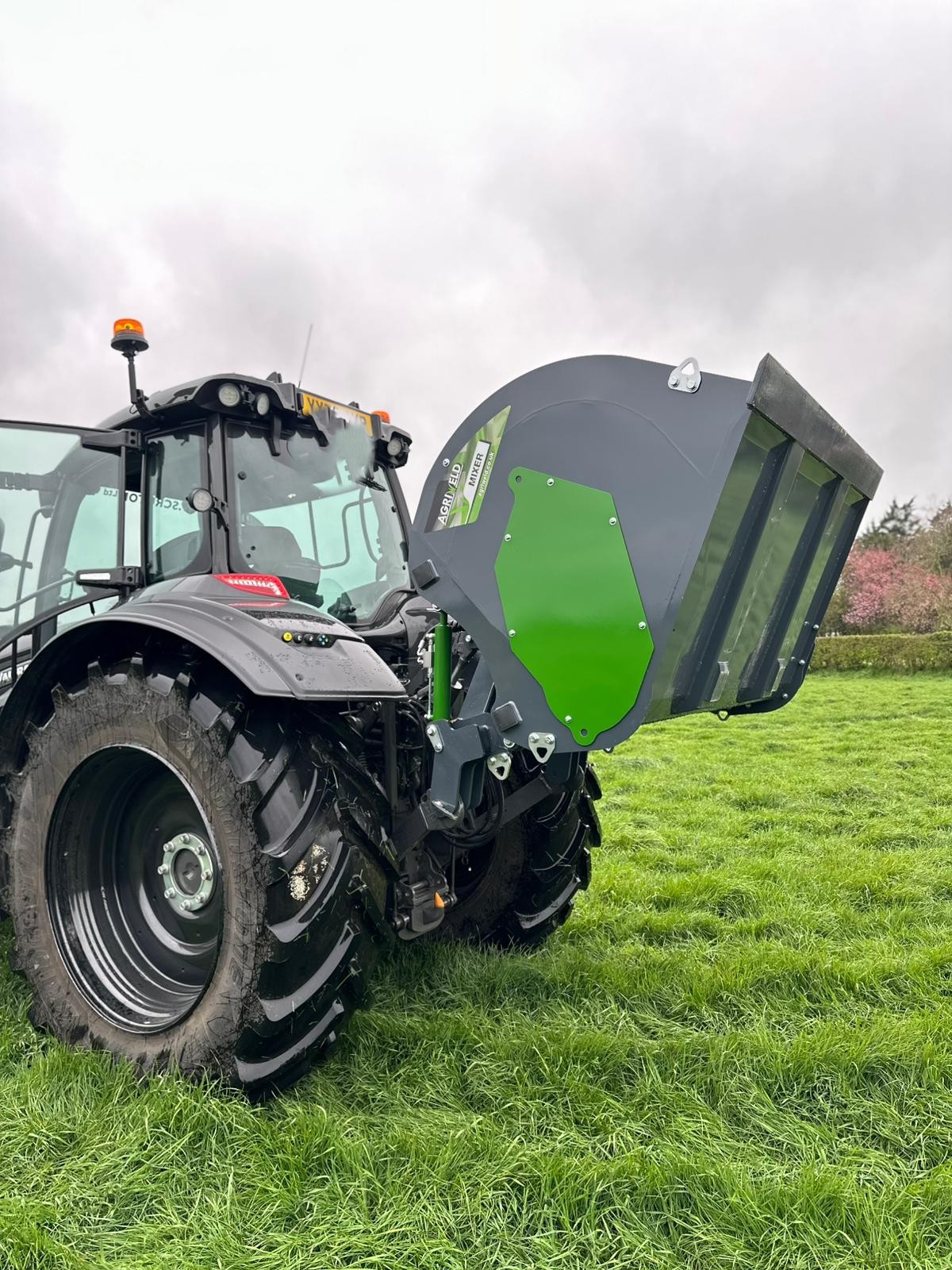

Mixer Bucket
- An efficient mixer bucket provides a much less expensive and more convenient method of thoroughly mixing all feed types.
Ideal for all grains, minerals, nuts, pellets and will incorporate a percentage of good quality PC maize silage and straw with ease.

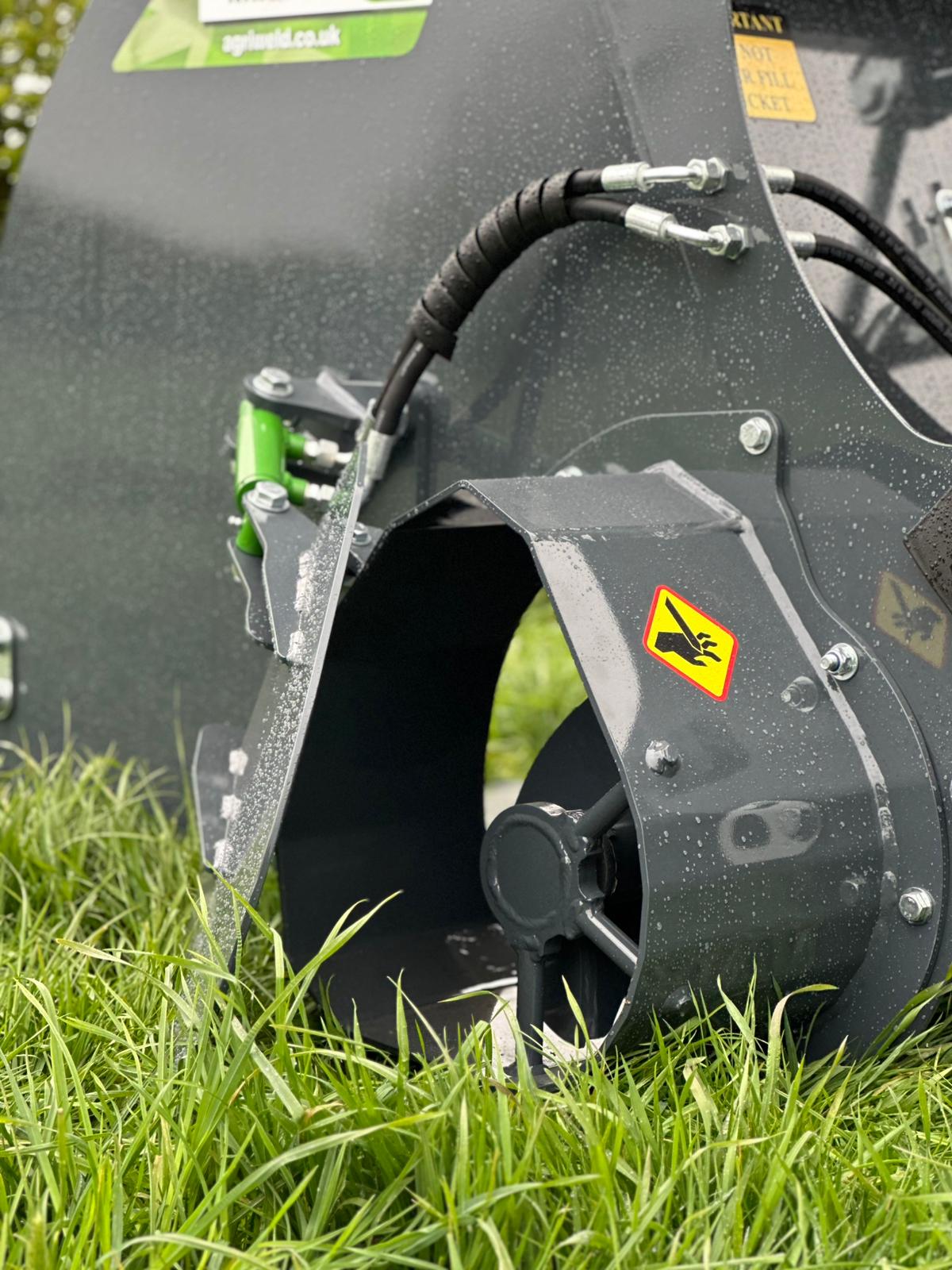

- Large diameter oval discharge chute for increased product flow with manual shut off flap.

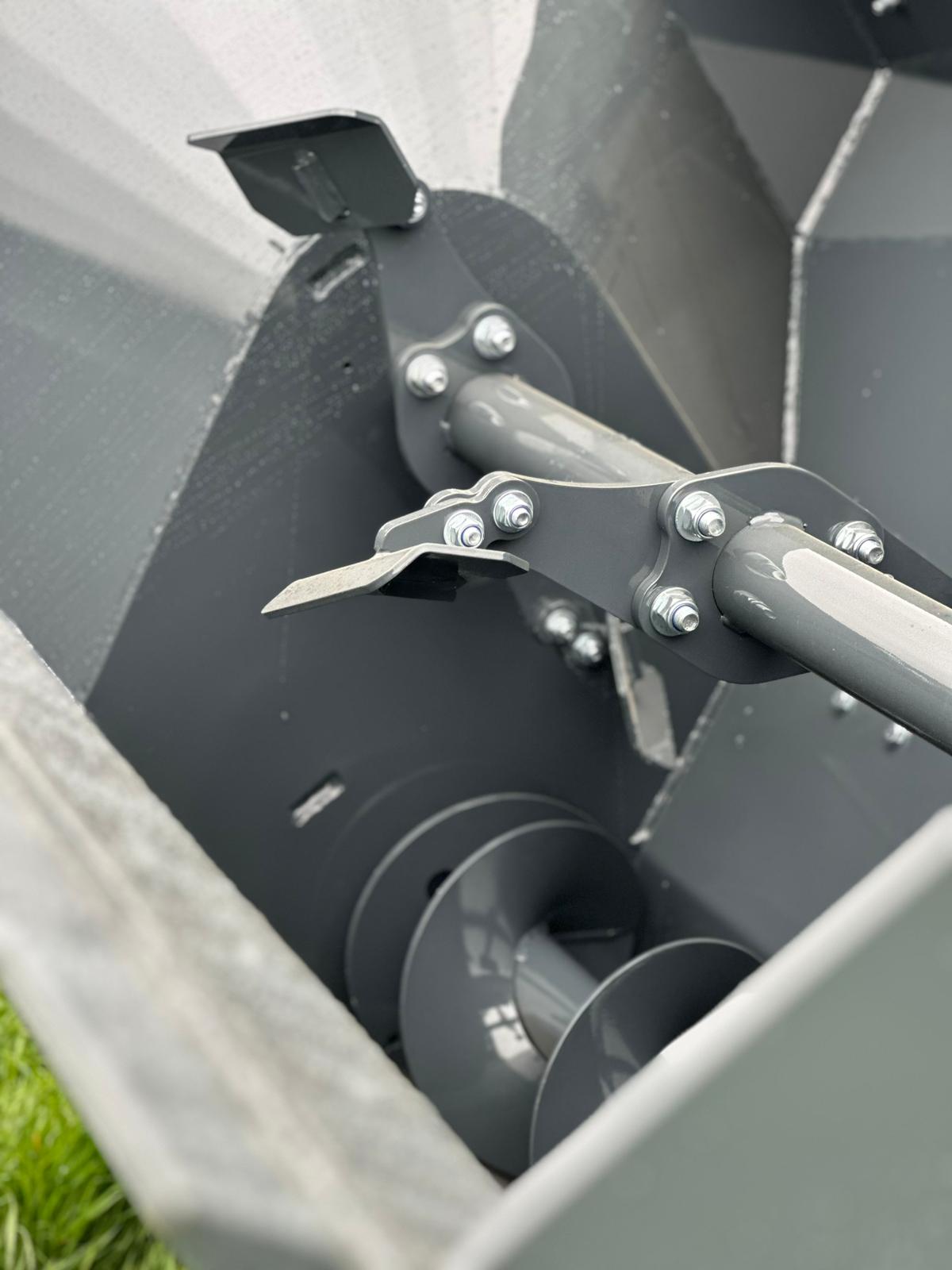

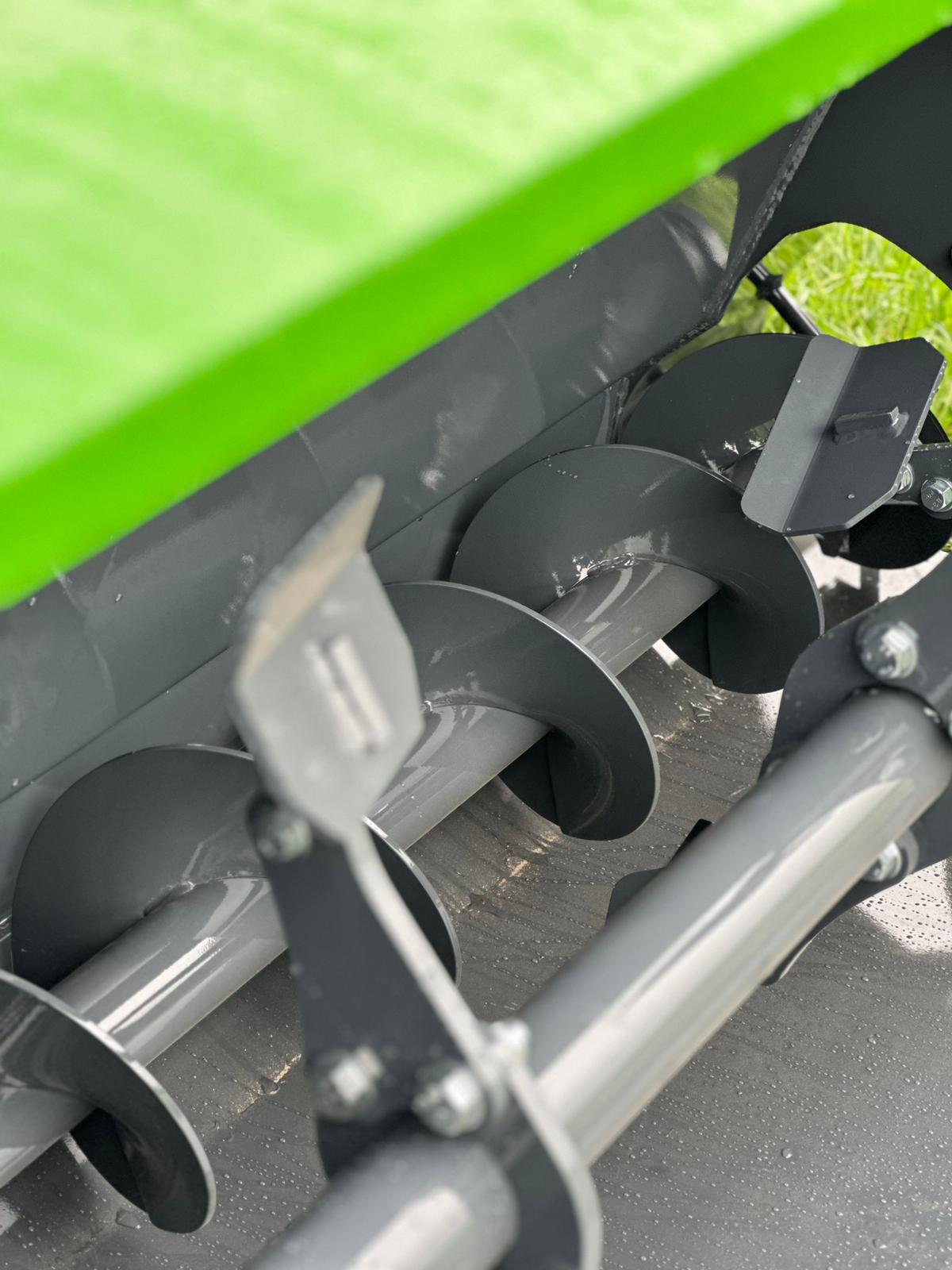

- Independent horizontal mixing shaft mixes in reverse operation and provides agitation on discharge.
Width adjustable, bolt-on brackets allow ‘off-set’ to discharge outside tractor wheels or into troughs.
- 1.7m³ / 53 cu ft capacity when full
6’6 Wide as standard with total 1.7m3 and mixing capacity of 75%
Shredder Bucket
The 8ft Shredder bucket features a 3m³ capacity, chain driven rotor with tensioning system, wearing toe plate and Auto-reset stone protection.
It can process up to 1 ton per minute.
Other sizes are available.
Available Models
Mixer Bucket
Mini
- 5ft Width
- Weld on brackets
6'6"
- 53 ft³ Capacity
- Bolt on brackets
Root/Cereal Bucket

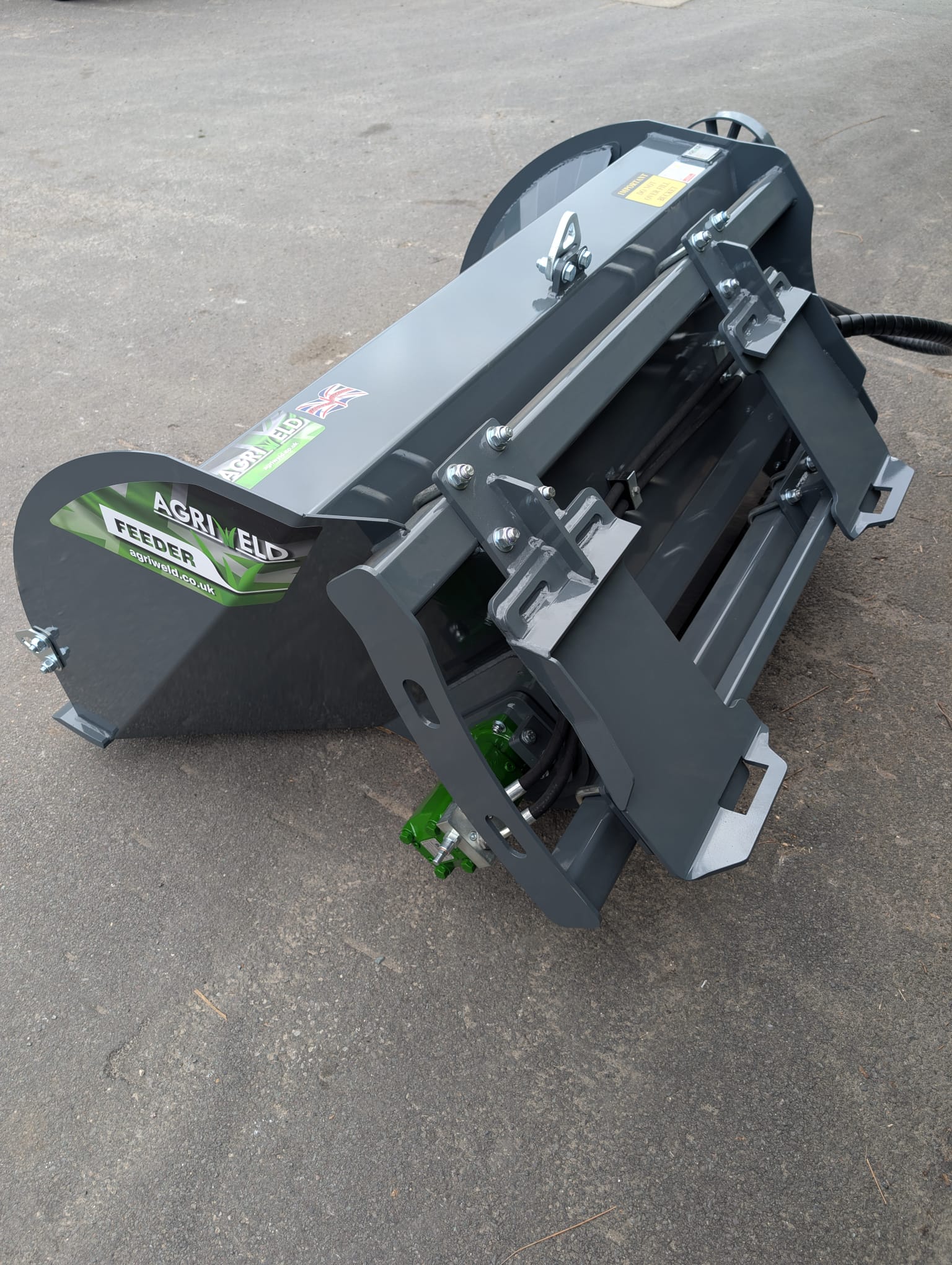

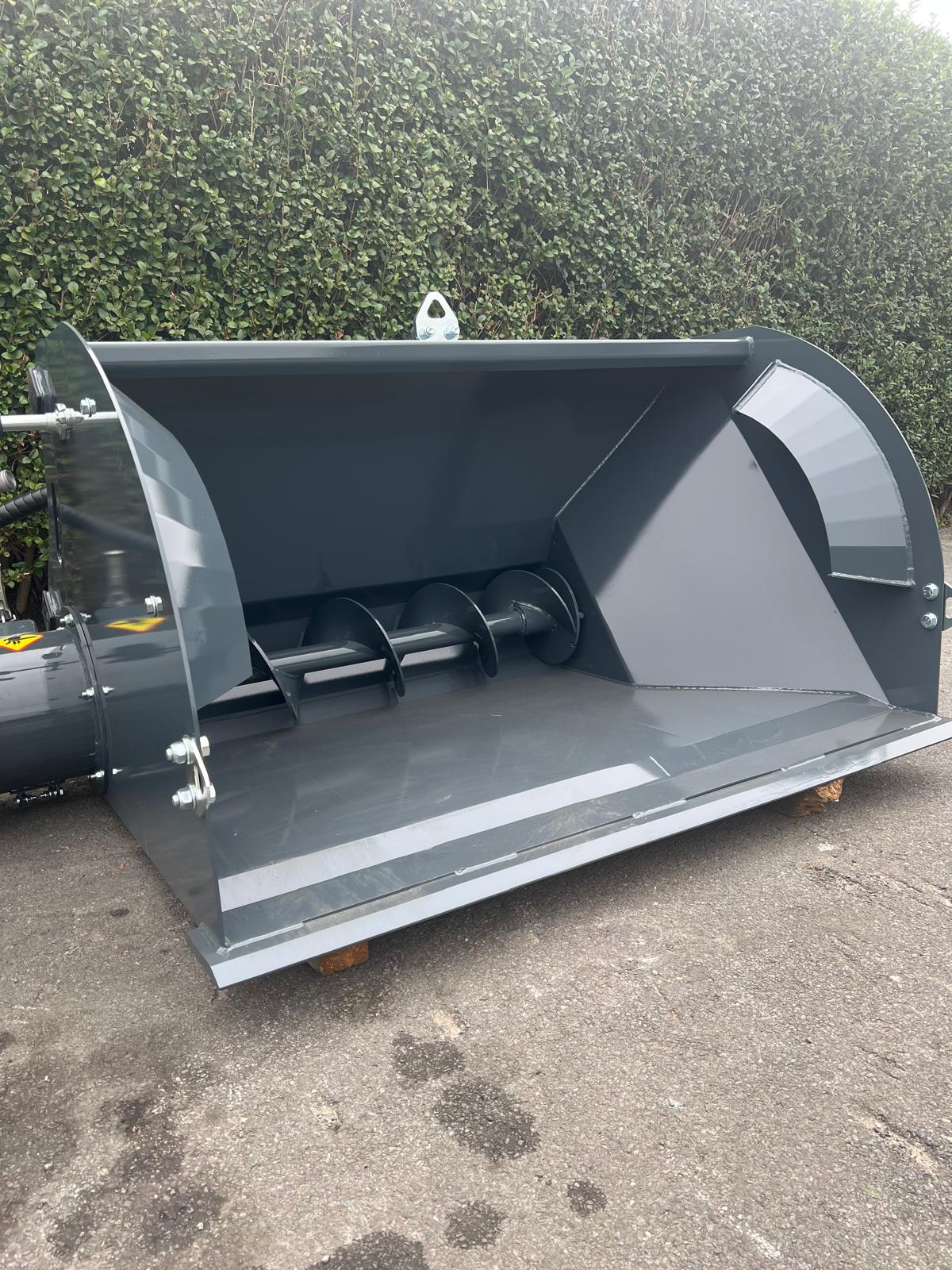

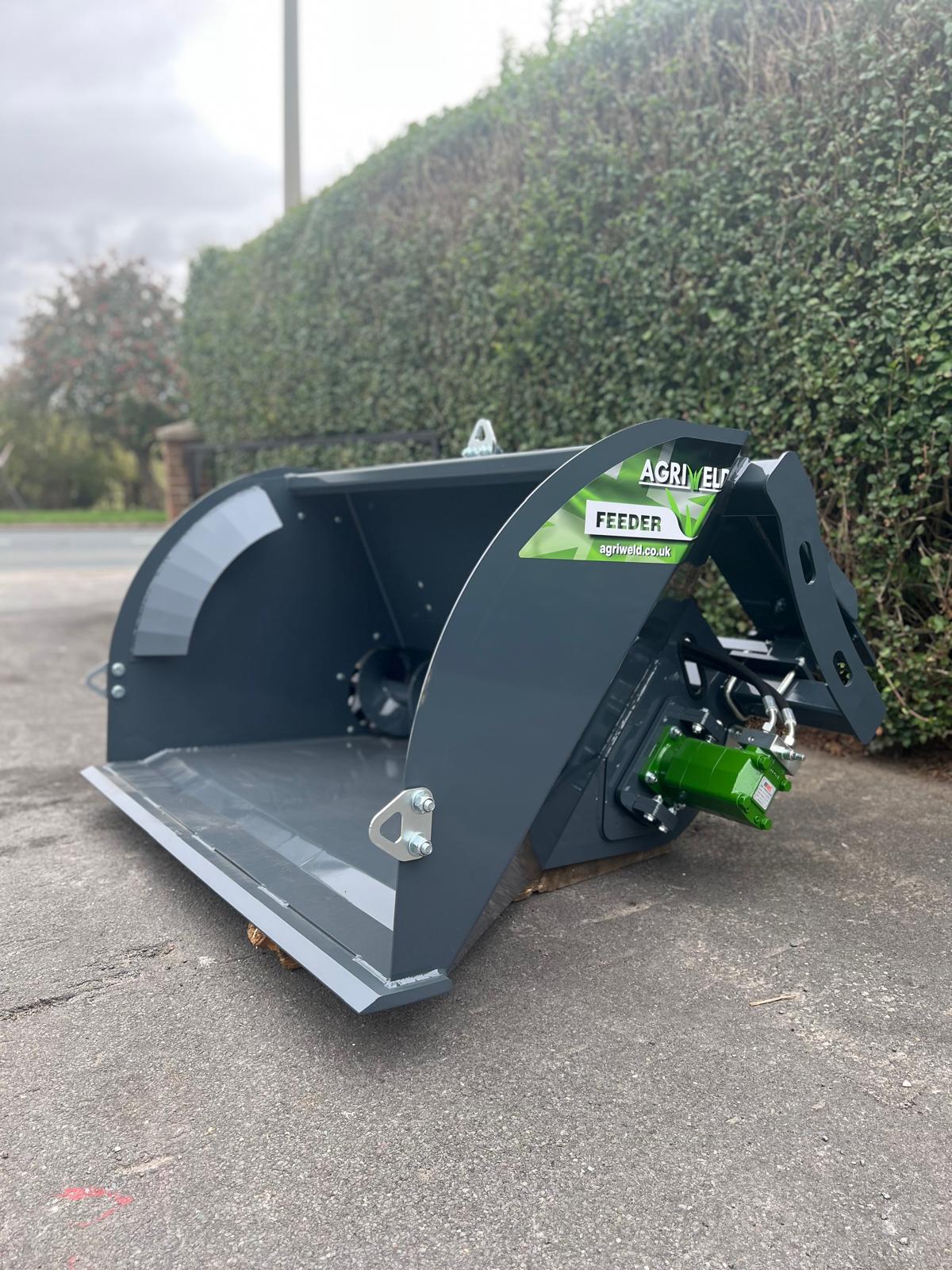

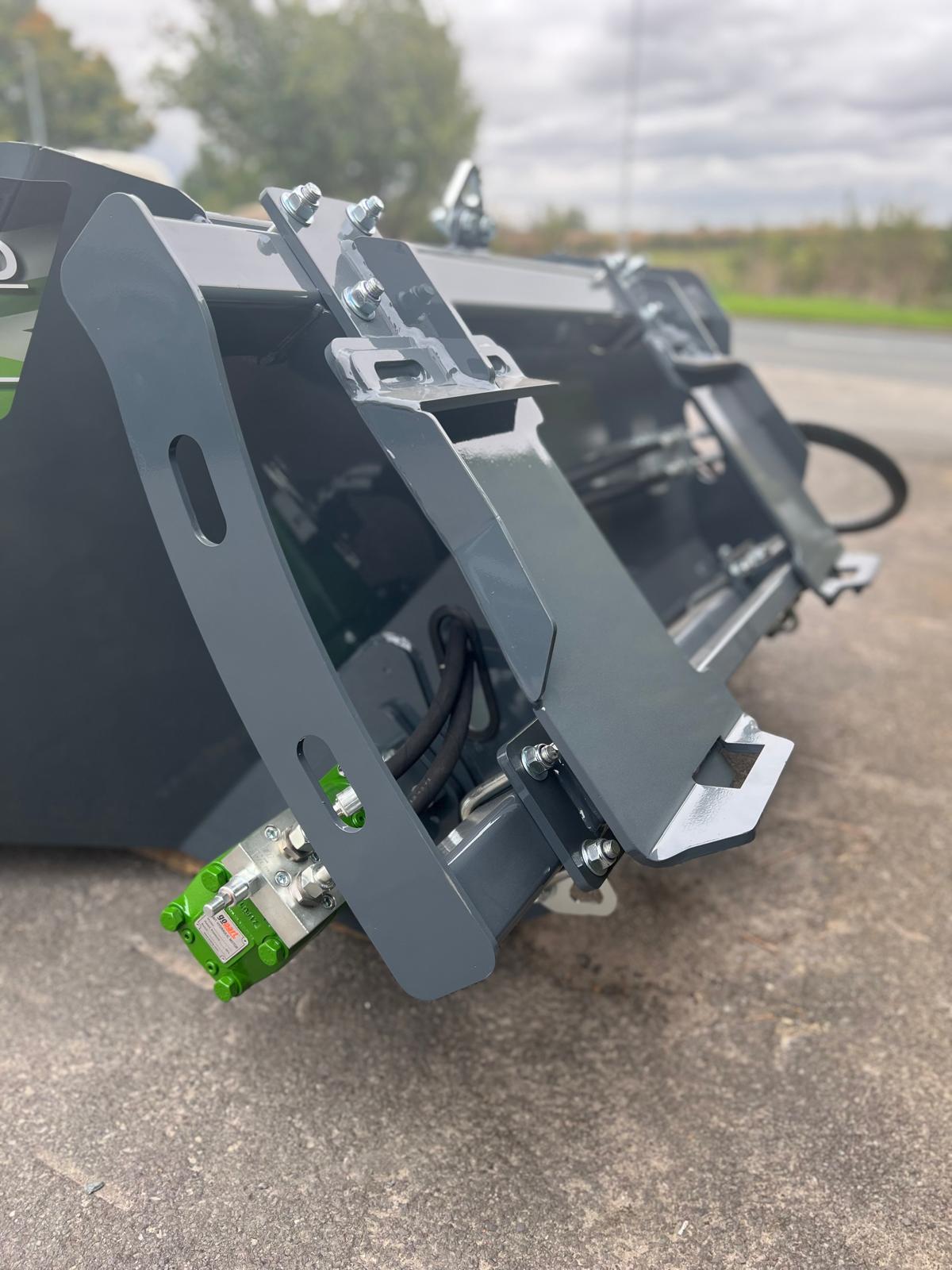

4' Micro Root
- 0.3m³ / 11 cu ft capacity
- Weld on brackets
- For skid steer/loaders with 500kg capacity lift
4'7"Pallet Tine
- 0.8m³ / 30 cu ft capacity
- For use on Pallet Tines
5'
- 0.75m³ / 27 cu ft capacity
- Bolt-on width adjustable brackets
6'6"
- 1.5m³ / 53 cu ft capacity
- Bolt-on width adjustable brackets
7'6"
- 1.7m³ / 60 cu ft capacity when full
- Bolt-on width adjustable brackets
Shredder Bucket
8' Shredder
3m³ Capacity
1 ton per minute
