Min Dis

The Min-Dis low disturbance Subsoiler is designed to lift and alleviate compaction and promote soil structure while causing minimum disturbance to the top layer of soil.

3-6m

Available Width

500/625mm

Centres

160+

Horsepower

300mm

Max Working Depth

Special Offer
Discounted

Ex Demo 6m Min-Dis

Available at a discounted rate. Fitted with Auto-reset but can be switched to Shear-Bolt or Snap-Bar.

Strictly first come first served.

Going Under

The Min Dis Low Disturbance Subsoiler is designed to lift and alleviate compaction and promote soil structure while causing minimum disturbance to the top layer of soil.

Minimum Disturbance is establishing itself as a great way to improve soil health and promote worm activity which helps increase crop yield.

You can read more about Minimum Disturbance Cultivation here:

What is Minimum Disturbance?

Cutting It

The Min Dis features a leading row of 460mm serrated ODS discs that cuts through the top layer of soil and trash, allowing the following low disturbance leg to pass through the soil without great disruption. Leaving the cover of trash on the field is good protection against water and wind erosion of the soil. Disc bar is fully height adjustable independent from the legs.
The following leg combined with a standard low disturbance point drives through the opening left by the disc at a maximum depth of 300mm. The angled wings on the point lift the soil before it sits back down causing a shattering effect across width of the machine, alleviating compaction, aerating the soil and helps water infiltration. This is all done with low disturbance to the top surface of the soil.


Agri-Packer™

The Agripacker™ at the rear leaves a weatherproof finish and features manual depth control and the Easy-Clean Scraper Bar™ that helps prevent the transferrence of volunteers between fields.

Leg Options

The Min-Dis offers a choice of 3 leg options. Shear-bolt, Snap-Bar™ or Auto-Reset.

See it in Action

Key Features

Easy-Clean™

Scraper bar prevents cross-contamination

Agri-Packer™

Leaves a Weatherproof finish

Legs

Low disturbance legs and points work up to 300mm deep

Standard Features

  • 460mm ODS Discs
  • GLS Points
  • Agri-Packer™
  • Easy-Clean™ Scraper Bar
  • 20mm Hardox Legs
  • LED Rear Lights with 7 pin plug
  • Hydraulic Depth Control
  • 12 Month Manufacturers Warranty

Optional Extras

  • Auto-Reset Leg Protection
  • Snap-Bar™ Leg Protection
  • Shear-Bolt Leg Protection
  • Güttler Roller
  • Toothed Roller
  • Seeder Mount Kit
Agriweld Min Disc in farmyard

Leg Protection

Our Universal Socket design offers the ability to specify whichever leg option suits the customer’s needs.

Shear-Bolt

The budget conscious option

Auto Reset

Hydraulic Leg offering autonomous variable pressure leg protection

Snap Bar

Toolless Snap-bar changing offering greater longevity than the Shear-Bolt

What is Minimum Disturbance?

Discover why Low Disturbance cultivation is beneficial

Introducing ODS

All our cultivation range (with the exception of the Min Disc & Min-Dis Grassland)  features  the Oblique Disc System.

This introduces a 7° angle to the leading disc edge which offers two benefits over the traditional in-line disc set up.

The angle increases the cut slot from 5mm to 40mm meaning a better aligned gap for the following leg to pass through reducing drag.

It also moves and cuts more trash from the path of the leg allowing it to pass along better with greater efficiency.

Agriweld ODS graphic

The Min Dis Grassland

In addition to the standard Min Dis we offer our Grassland Version. This features a toothed roller with Easy-Clean Scraper Bar™

The Grassland also features removable stub axles and now has wider disc mounting points for increased stability.

Agriweld Min-Dis Grassland cultivator
Shear-bolt cultivator

Leg Protection

Shear-Bolt, Snap-Bar™ or Auto-Reset Leg Protection

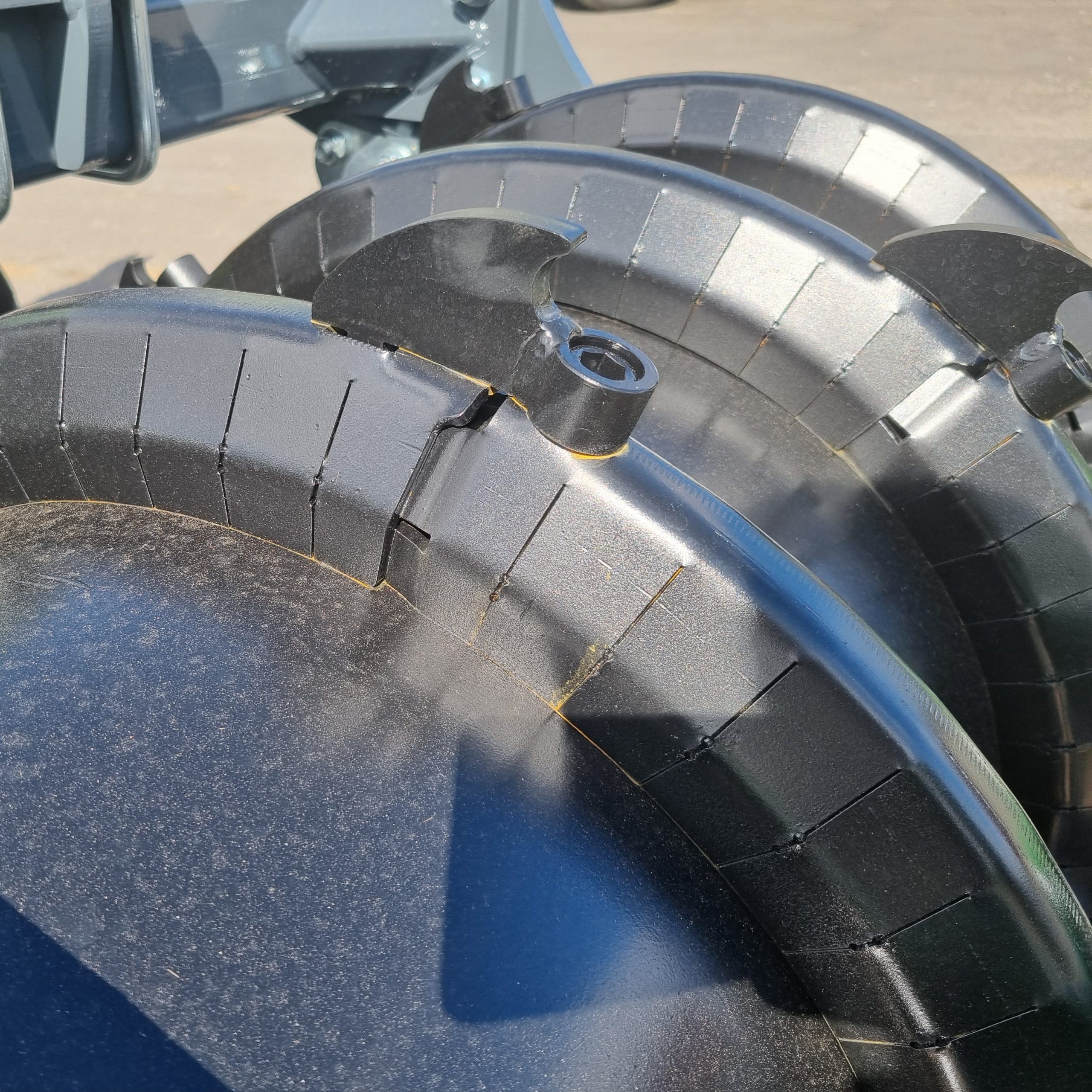

Render of an Agri-Packer Roller

Roller

Flat roller with drive teeth

measuring tape, inches, sewing-953422.jpg

Width Options

Available in 2.5 or 3m widths

Available Models

Arable

3m

Rigid Body, 6 legs

Recommended HP: 180+

3.5m

Rigid Body, 6 legs

Recommended HP: 200+

4m

Folding, 8 legs

Recommended HP: 300+

5m

Folding, 10 legs

Recommended HP: 400+

6m Trailed

Folding Body, 12 legs

Recommended HP: 500+

Grassland

2.5m Rigid

Rigid Body, 4 legs

Recommended HP: 160+

3m Rigid

Rigid Body, 6 legs

Recommended HP: 160+

Order yours today

Demo's available

We offer working demonstrations of our cultivation machines on your own land to give you the chance to see how they perform before you buy.

Contact us today to arrange a demo.
