ASL

The ASL low disturbance toolbar allows for a one-pass system

3-4m

Available Width

6 - 12

Legs

200+

Horsepower

300mm

Max Working Depth

As Easy as ASL

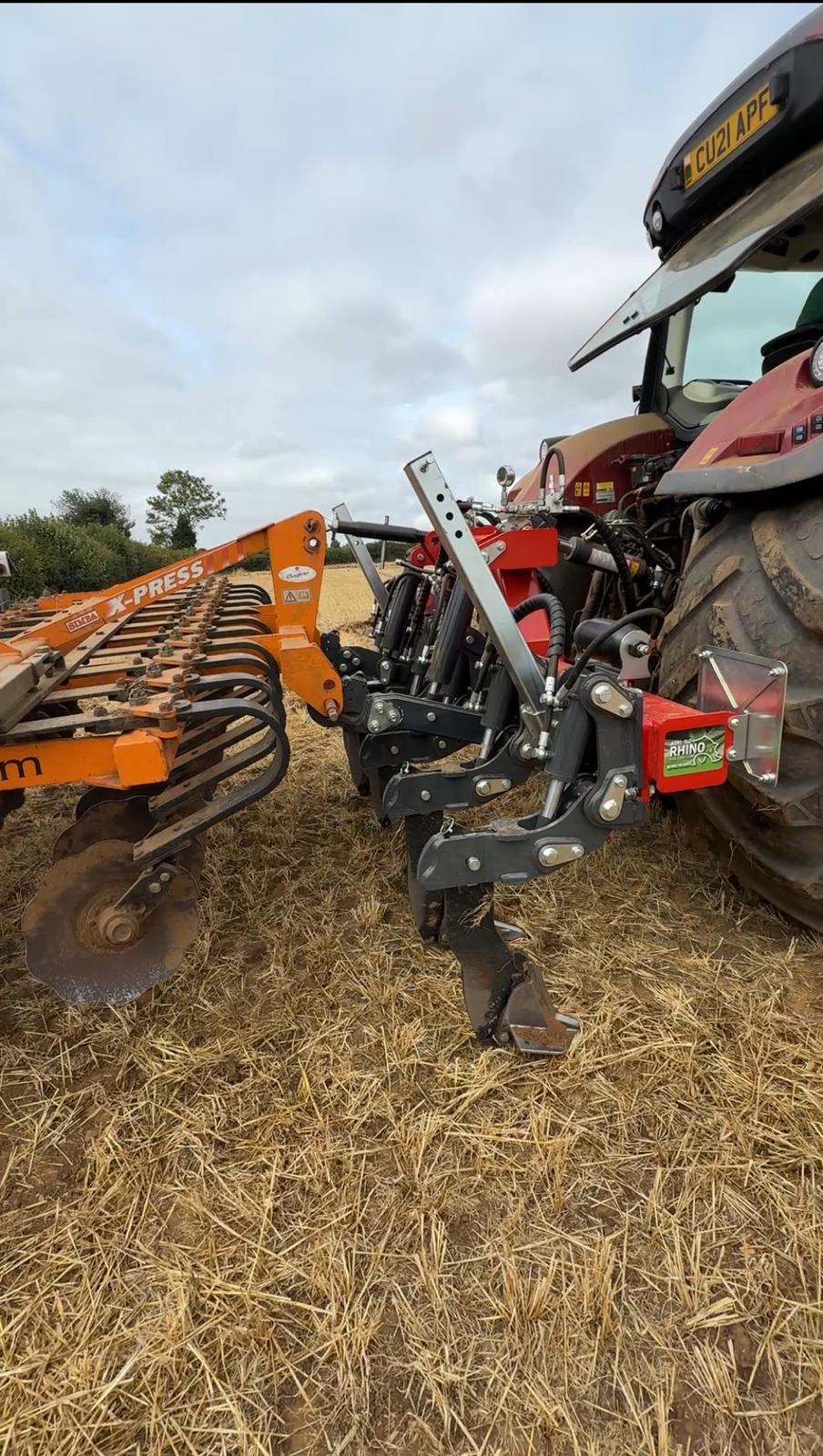

The ASL Low Disturbance Toolbar. Designed to run in conjunction with a mounted combination drill, or trailed drills/cultivators creating a one-pass system. This reduces man-hours and fuel costs saving you money. The auto-reset legs with low disturbance points will lift and shatter to 300mm deep. This then alleviates compaction across the full width of the machine.

Tight Turn System

Available on 4 widths, the Leg Lift and wing folding operates on the same hydraulic service allowing the trailed implement to pass under the machine on tight headland turns.


Leg Protection

The ASL comes fitted with Auto-Reset Leg Protection that offers maximum effectiveness against in-ground debris.

OCD

An option to add to the ASL is the Oblique Cleaner Disc. A row of small aggressive cut discs that can be mounted in front of the legs to move trash out of the way of the leg. These can be retro-fitted or factory fitted.





See it in Action

Key Features

Leg Protection

Auto-Reset as standard

CAT3 Walterscheid hooks

For mounted/combination drills

Legs

Low disturbance legs and points work up to 300mm deep

Standard Features

  • CAT3 Walterscheid hooks
  • Auto-Reset Legs
  • Tight Turn Feature

Optional Extras

  • Drawbar Clevis
  • Gathering discs
  • Additional hydraulic services
  • Hydraulic lift/lower rear linkage
  • PTO
  • Oblique Cleaner Discs

What is Minimum Disturbance?

Discover why Low Disturbance cultivation is beneficial

Available Models

Rigid

3m

Rigid Body, 6 legs no Tight-Turn feature

4m

Rigid Body, 8 legs

Folding

4m

Hydraulic Folding, 8 legs

Order yours today

Demo's available

We offer working demonstrations of our cultivation machines on your own land to give you the chance to see how they perform before you buy.

Contact us today to arrange a demo.
